We measure the total amount of acoustic energy radiated into the air by the product (test object).
Like sound pressure level, acoustic power is expressed in decibels (dB) and represents the actual strength of the sound itself.
We offer acoustic measurement solutions, including both measuring instruments and acoustic environments such as anechoic chambers, for accurate acoustic power measurement.
- Measurement of acoustic power (acoustic strength) generated by the test object
- Construction of measurement environments compliant with relevant standards
- Intensity Method: JIS Z 8736-1, -2, -3 / ISO 9614-1, -2, -3
- Sound Pressure Method: JIS Z 8732, Z 8733 / ISO 3744, 3745
- Acoustic Measurement System + Full Anechoic Chamber / Semi-Anechoic Chamber
[Examples of Target Sound Sources]
Automotive components, electrical devices, and various drive system parts/products (e.g., transmissions, gears, motors, fans, air conditioners, etc.)

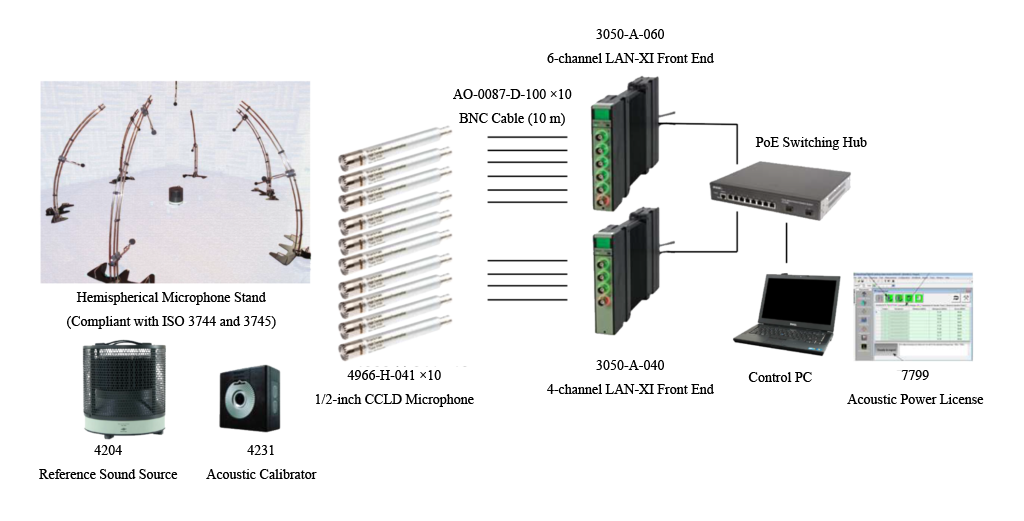

Acoustic Power Measurement: Standard Specifications

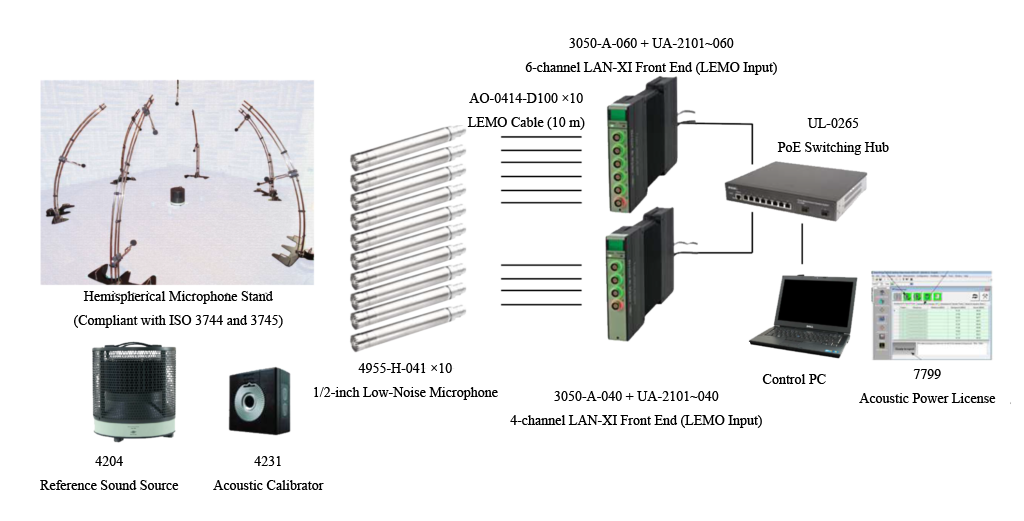

Acoustic Power Measurement: Low-Noise Specifications
×
Specifications Table
Acoustic Measurement System
| 4966-H-041 | 4955 | |
|---|---|---|
| Application | General-purpose measurement | Low-noise |
| Nominal Sensitivity | 48.4 mV/Pa | 1100 mV/Pa |
| Self Noise | 16.5 dBA | 6.5 dBA |
| Frequency Range | 6.3 to 20 kHz | 10 to 16 kHz |
| Operating Temperature Range | -50 to 125°C | -20 to 100°C |
| Acoustic Field | Free field | Free field |
| External Polarization Voltage | 0 V | 200 V |
Acoustic Measurement Room
Features
Top Brands
We offer high-end solutions from two leading companies in the field of acoustic measurement instruments and acoustic testing environments: HBK and Sonora.
Total Solutions
With our proven expertise and extensive track record, we provide comprehensive solutions to address every challenge in acoustic measurement.
Complete Package
Moritani does more than just sell products — we provide full support from initial implementation to after-sales service, ensuring a seamless and reliable experience.
Acoustic Power Measurement Case Studies
Acoustic Power Measurement Case Studies
Brochure Download
Click here to download the brochure.
Contact Us
- Contact us by email
-
- Contact us by phone
-
Moritani Shokai
(Machinery Department No. 2, Tokyo Head Office)
Introduction of the Manufacturer
-
Hottinger Bruel & Kjaer
HHBK is a merger of two companies: Brüel & Kjær of Denmark and HBM of Germany.
Brüel & Kjær is one of the world’s leading manufacturers of acoustic and vibration measurement instruments, known as a total measurement chain supplier.Learn more about HBK
-
Sonora Technology Co., Ltd.
Sonora Technology is a leading Japanese manufacturer of industrial anechoic chambers and anechoic boxes.
From design and manufacturing to installation and acoustic performance assurance, Sonora provides fully integrated solutions to build complete acoustic measurement environments from the ground up.Learn more about Sonora
